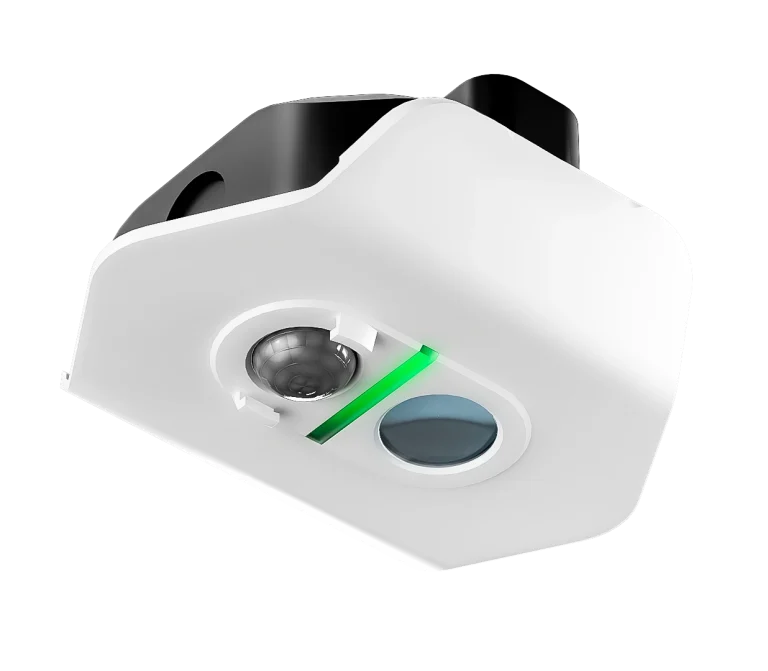

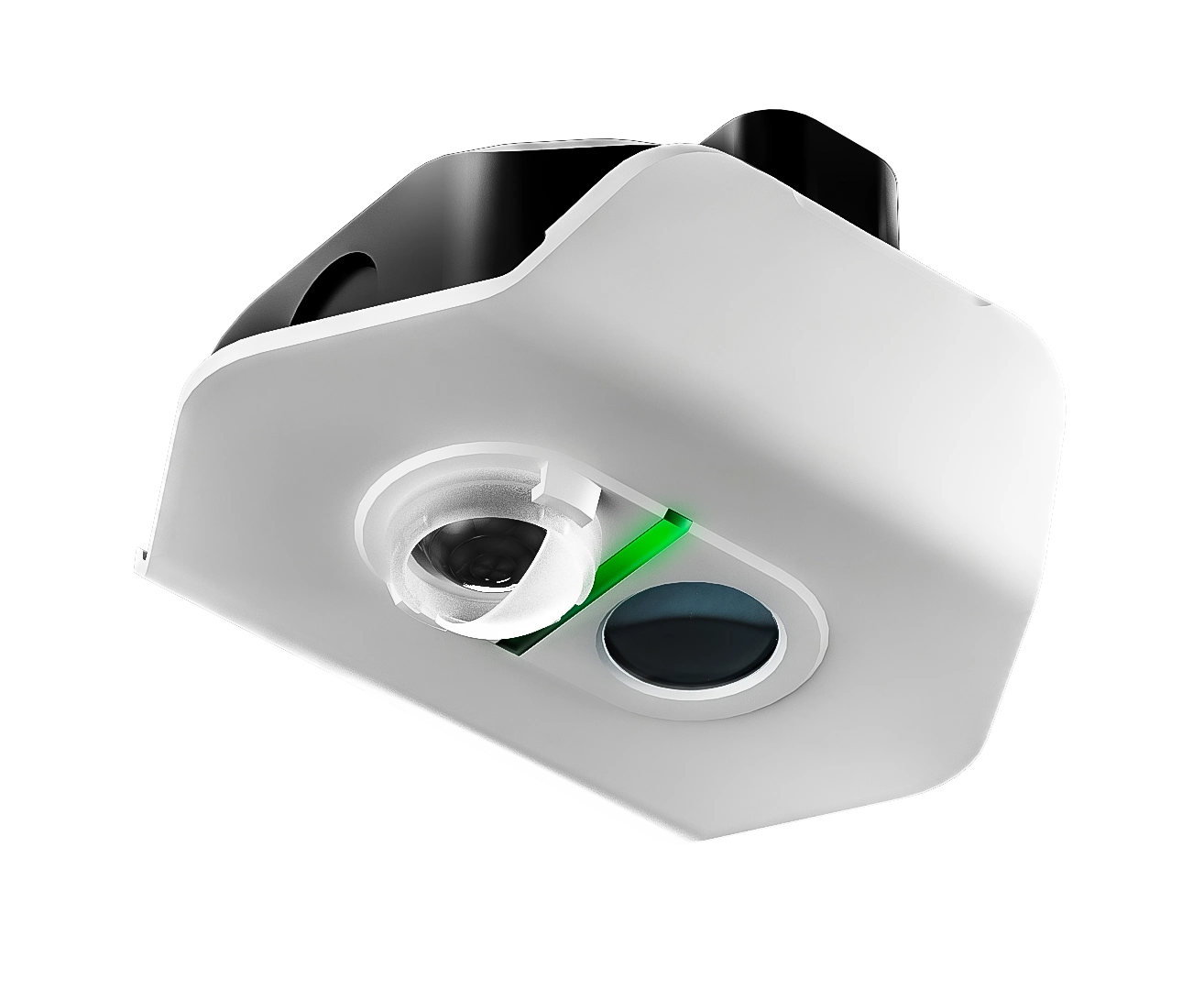

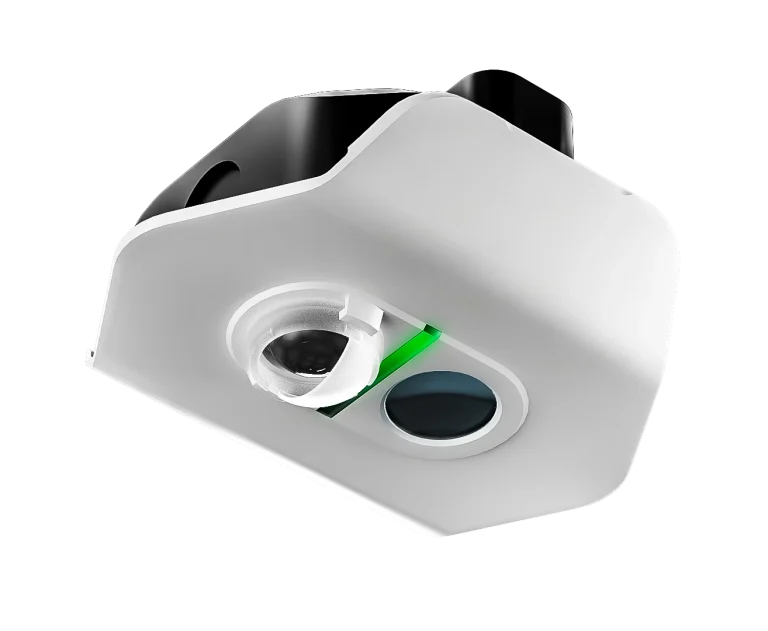

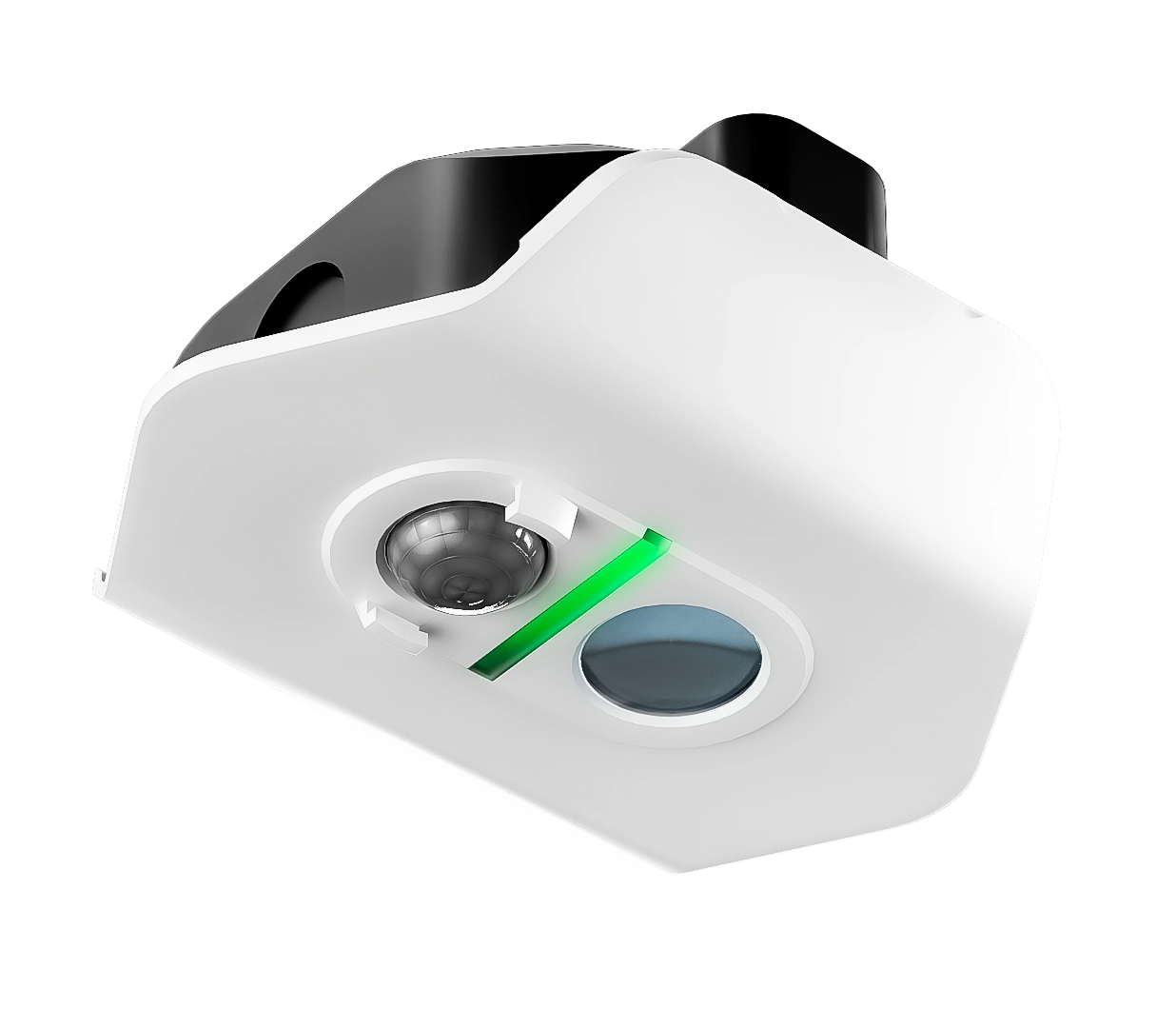

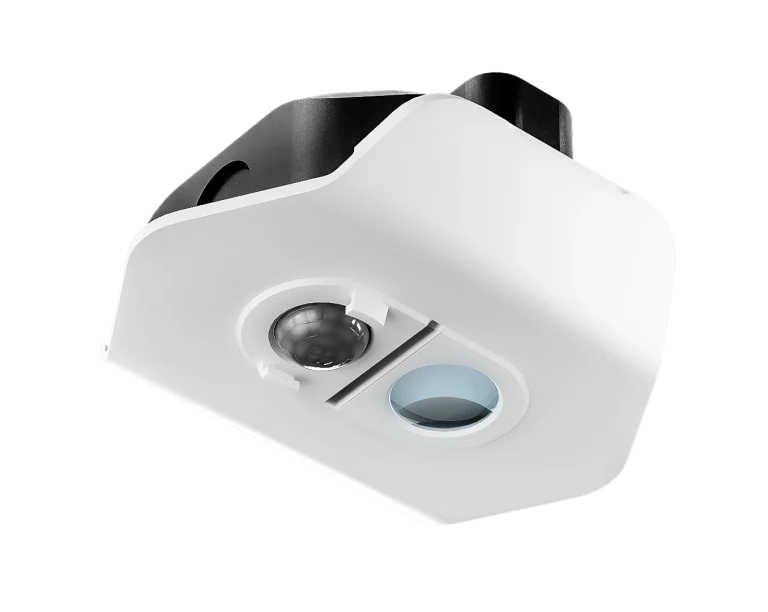

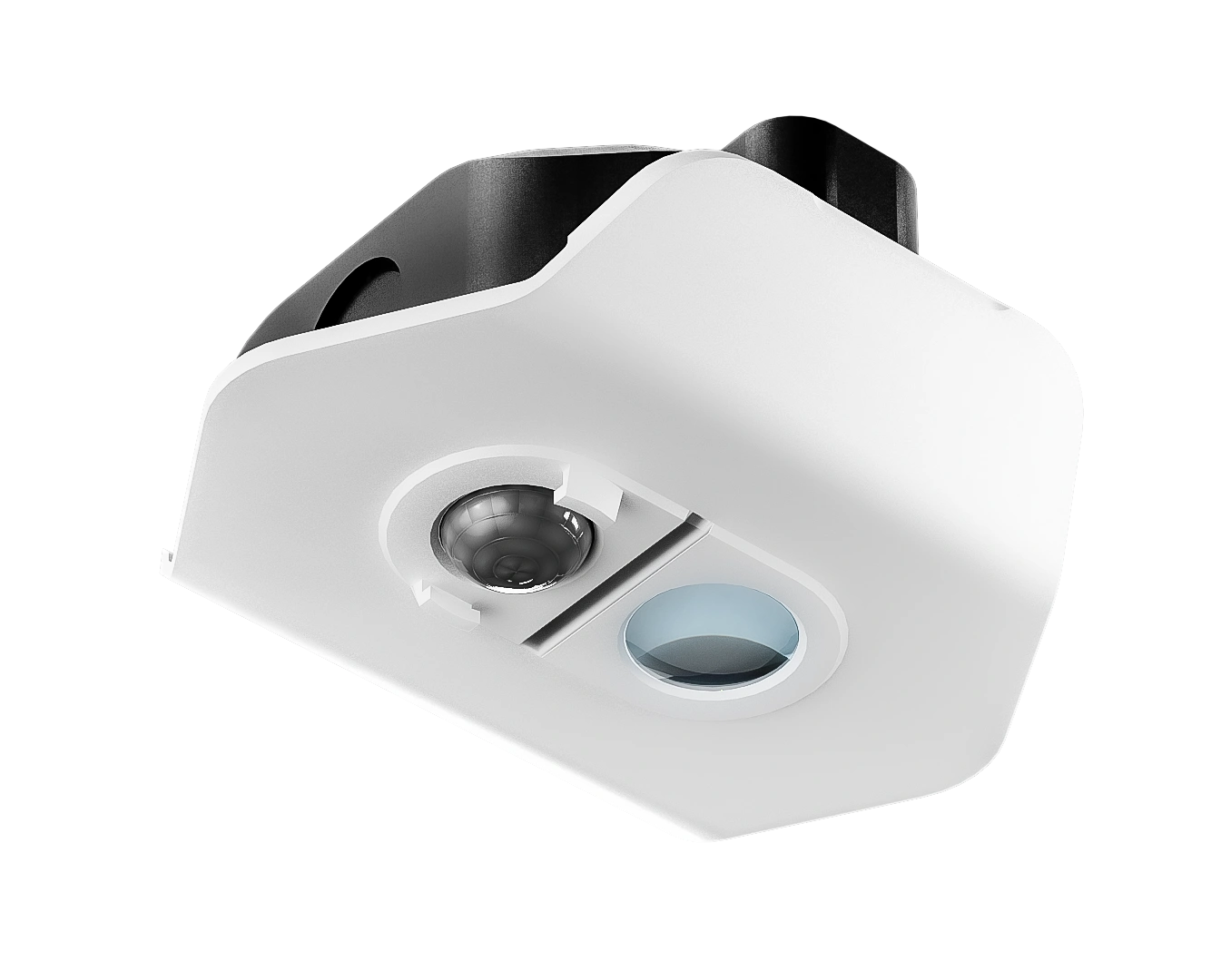

DA2-SEN201 DALI-2 Infrared Highbay Presence & Illumination Sensor
The DA2-SEN201 presence and light sensor is engineered to detect human presence within its designated detection zone, measure ambient illumination levels, and transmit the corresponding data to a control system operating on the DALI protocol.
Power supply DALI bus
12 - 20.5 V
Typical current consumption at 16V input voltage
<2 mA
Supported DALI protocol standards
IEC 62386-101, IEC 62386-103, IEC 62386-303,
IEC 62386-304, IEC 62386-105, IEC 62386-332
IEC 62386-304, IEC 62386-105, IEC 62386-332

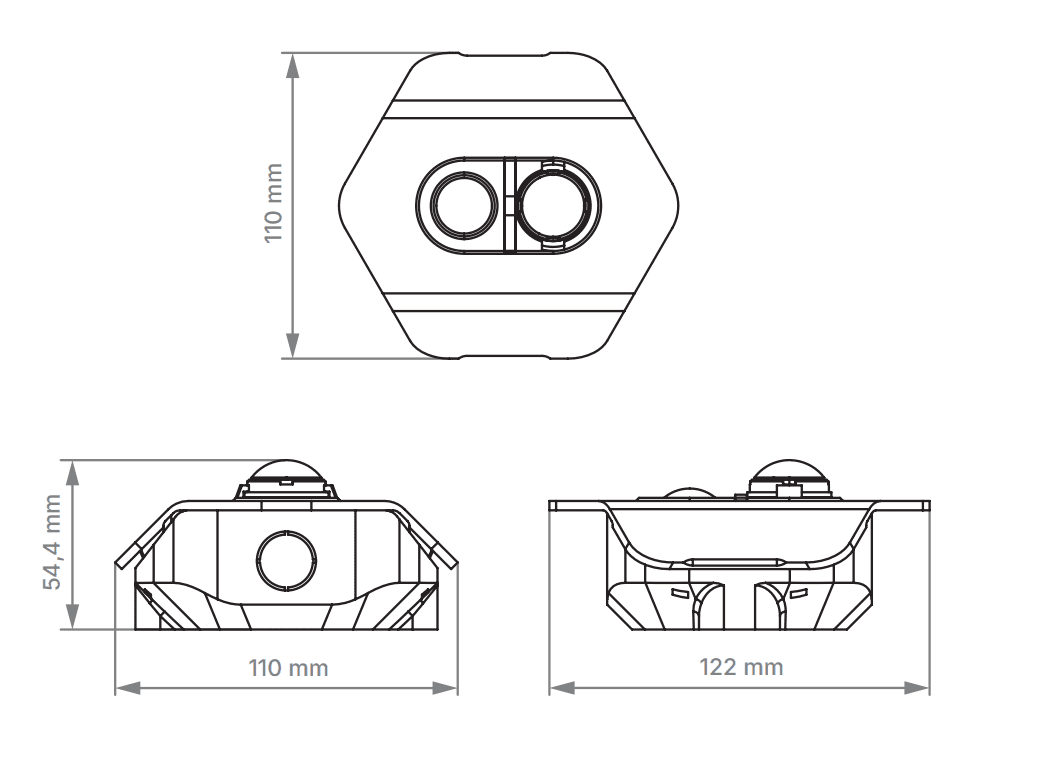

Overall dimensions
110 х 122 х 54,4 mm
The mass of the sensor
<160 g
Operating temperature
0..+40° C
Protection degree of the shell
IP54
Protection class
II

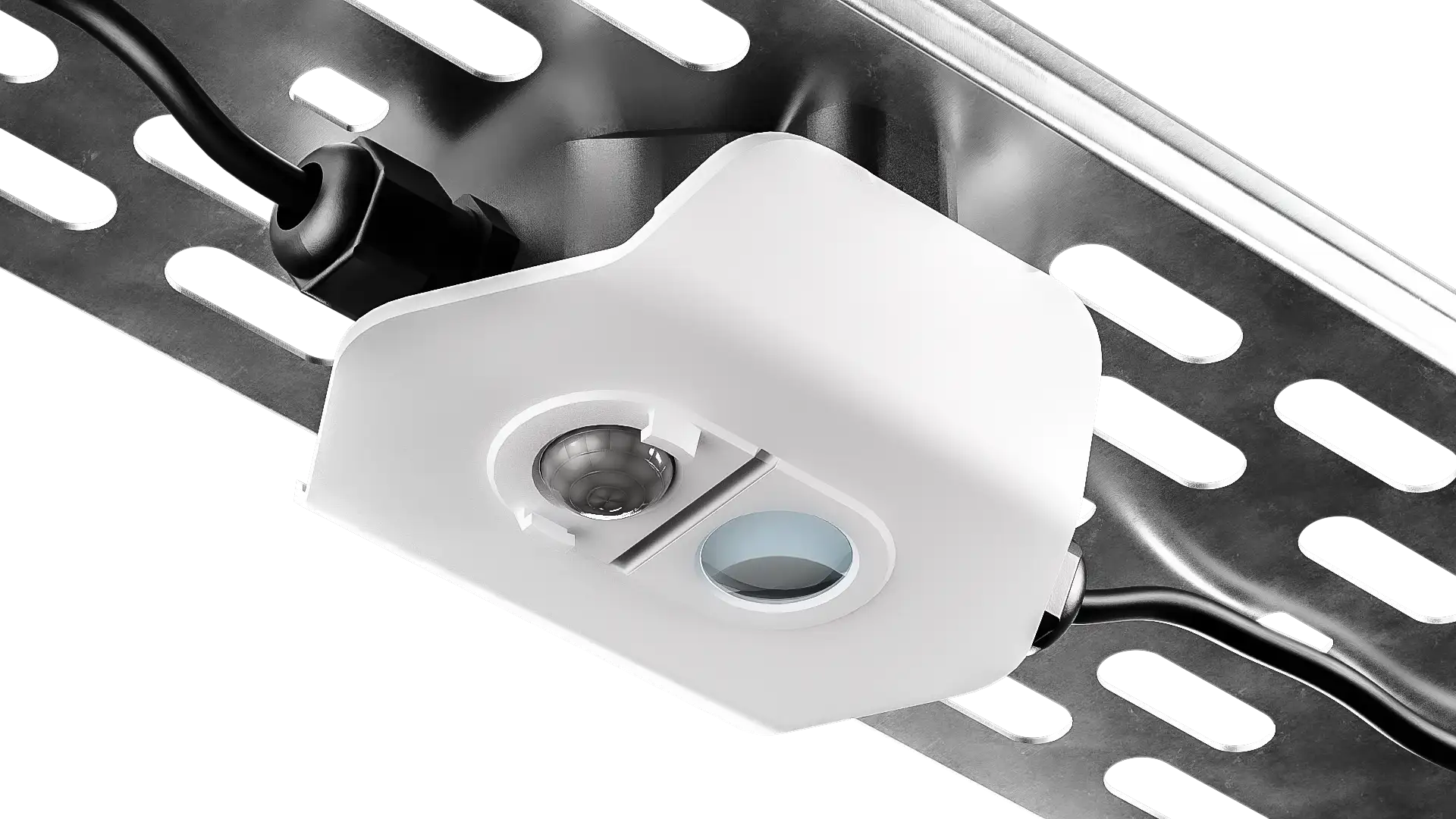

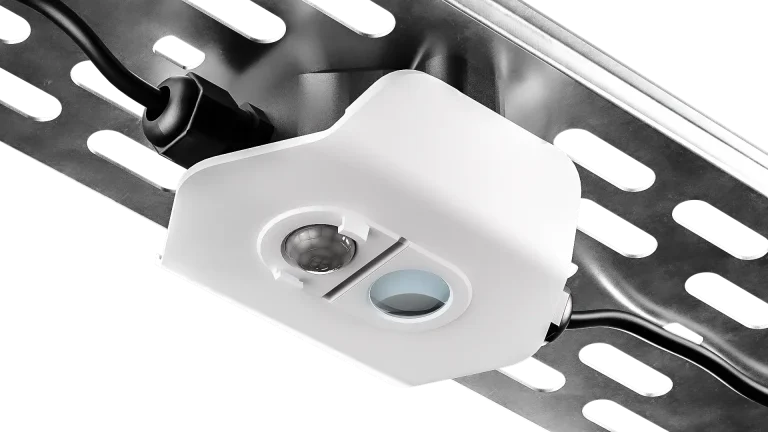

Mounting type
surface
Sensor type
passive infrared
Number of switching zones
128
Detection angle
62°

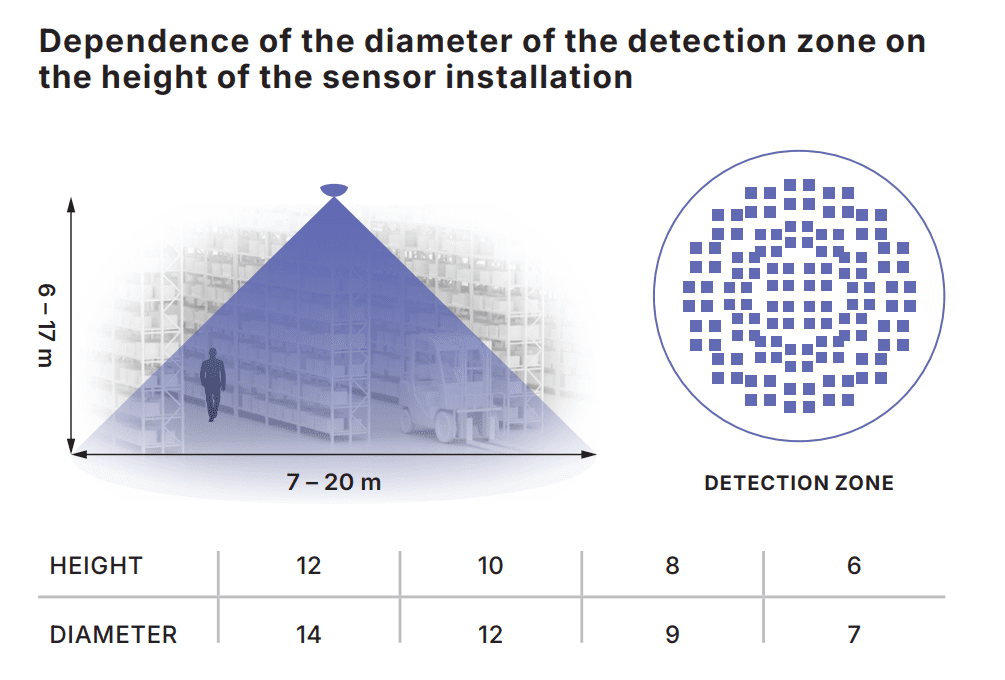

Mounting height
up to 17 m**
Recommended mounting height
up to 12 m
