DA2-SEN302 DALI-2 Infrared Presence and Light Sensor
The DA2-SEN301 presence and light sensor is designed to register the presence of a person within its detection zone, measure ambient illumination and then transmit values to a control system based on the DALI protocol.
Power supply DALI bus
12 - 20.5 V
Typical current consumption at 16V input voltage
<2 mA
Supported DALI protocol standards
IEC 62386-101, IEC 62386-103, IEC 62386-303,
IEC 62386-304, IEC 62386-105
IEC 62386-304, IEC 62386-105
Overall dimensions
50 х 50 х 38,6 mm
The mass of the sensor
<20 g
Operating temperature
0..+40° C
Protection degree of the shell
IP50
Protection class
II
Mounting type
flush/surface (for surface mount must be used the SBX-01 mounting box)
Sensor type
passive infrared
Number of switching zones
208
Detection angle
125°

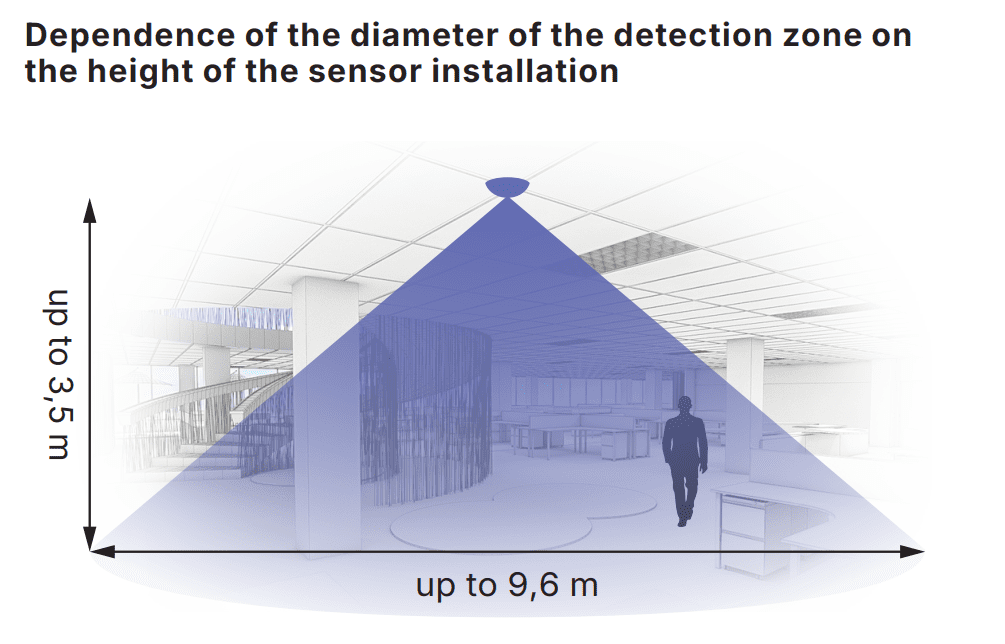

Mounting height
up to 3.5 m**
Recommended mounting height
up to 2,5 m
